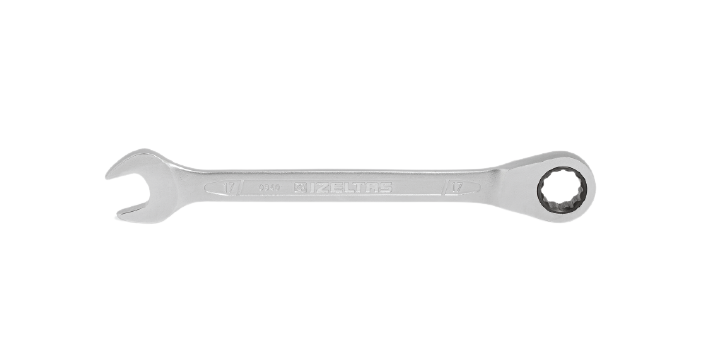

İzeltaş Cırcır Kombine Anahtar
495,59 TL
Cırcır Kombine Anahtar (mm)
Krom Vanadyum, Krom Kaplı
Krom Vanadyum, Krom Kaplı
| Kod |  mm |
L mm |
a1 mm |
a2 mm |
b1 mm |
øD mm |
 g |
 |
|---|---|---|---|---|---|---|---|---|
| 0340 02 0008 | 8 | 140 | 4.9 | 6.4 | 16.9 | 17.1 | 35 | 10 |
| 0340 02 0009 | 9 | 149 | 5 | 6.7 | 19.7 | 19.1 | 40 | 10 |
| 0340 02 0010 | 10 | 159 | 5 | 7 | 21.1 | 20.3 | 55 | 10 |
| 0340 02 0011 | 11 | 165 | 5.3 | 7.3 | 24 | 22.5 | 70 | 10 |
| 0340 02 0012 | 12 | 171 | 5.6 | 7.6 | 26.5 | 23.5 | 80 | 10 |
| 0340 02 0013 | 13 | 178 | 5.9 | 8.1 | 27.7 | 25.3 | 90 | 10 |
| 0340 02 0014 | 14 | 190 | 6.3 | 8.5 | 30.7 | 27.5 | 120 | 10 |
| 0340 02 0015 | 15 | 199 | 6.7 | 9 | 32 | 28.8 | 135 | 10 |
| 0340 02 0016 | 16 | 208 | 6.7 | 9.5 | 34 | 30.3 | 155 | 10 |
| 0340 02 0017 | 17 | 225 | 7 | 10 | 36.2 | 32.2 | 190 | 10 |
| 0340 02 0018 | 18 | 236 | 7.7 | 10.5 | 38.2 | 33.3 | 200 | 10 |
| 0340 02 0019 | 19 | 248 | 8.3 | 11 | 40.4 | 35 | 240 | 10 |
| 0340 02 0021 | 21 | 288 | 9.4 | 13 | 45.7 | 40.7 | 330 | 10 |
| 0340 02 0022 | 22 | 288 | 9.4 | 13 | 45.7 | 40.7 | 350 | 10 |
| 0340 02 0024 | 24 | 321 | 10.5 | 14.5 | 52 | 46.2 | 470 | 5 |
