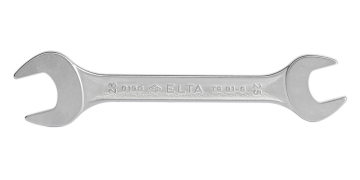

Elta İki Ağız Anahtar 14X15 Mm
82,37 TL
İki Ağız Anahtar (mm)
Krom vanadyum, krom kaplı
TS 81-6
DIN 895
| Kod |  mm |
L mm | a1 mm | b1 mm | b2 mm |  g |
 |
|---|---|---|---|---|---|---|---|
| 0150 01 0607 | 6×7 | 98 | 3.3 | 13.5 | 15.5 | 10 | 10 |
| 0150 01 0809 | 8×9 | 108 | 3.6 | 17.5 | 19.5 | 20 | 10 |
| 0150 01 1011 | 10×11 | 120 | 4.1 | 21.5 | 23.5 | 30 | 10 |
| 0150 01 1213 | 12×13 | 134 | 4.5 | 25.5 | 27.5 | 40 | 10 |
| 0150 01 1415 | 14×15 | 150 | 5 | 29.5 | 31.5 | 60 | 10 |
| 0150 01 1617 | 16×17 | 163 | 5.5 | 33.5 | 35.5 | 85 | 10 |
| 0150 01 1819 | 18×19 | 178 | 6 | 37.5 | 39.5 | 110 | 10 |
| 0150 01 2022 | 20×22 | 198 | 6.5 | 41.5 | 45.5 | 145 | 10 |
| 0150 01 2123 | 21×23 | 218 | 6.9 | 43.5 | 47.5 | 175 | 10 |
| 0150 01 2426 | 24×26 | 236 | 7.4 | 49.5 | 53.5 | 235 | 10 |
| 0150 01 2528 | 25×28 | 250 | 7.8 | 51.5 | 57.5 | 275 | 10 |
| 0150 01 2732 | 27×32 | 265 | 8.3 | 55.5 | 65.5 | 345 | 10 |
